Rich iOS notifications with Notification Content App Extension

In this post I will talk about iOS notification customization with Notification Content App Extension.


During a workshop I recently attended I had the opportunity to explore a new interesting app extension type available in the iOS SDK: Notification Content App Extension. This extension has been added by Apple in iOS 10. By using this extension it is possible to customize the UI of your push and local notification. In this way you can show more engaging notification to your users emoji-grin.
Let's see an example where we create a notification with custom UI using this extension type. To do that I will use some assets taken from the nasa photo journal. You can find the complete example in this github repository. Let's start from the beginning: add a Notification Content Extension to your app. To do that just select the + button in the target section that appears after selecting the xcodeproj file.

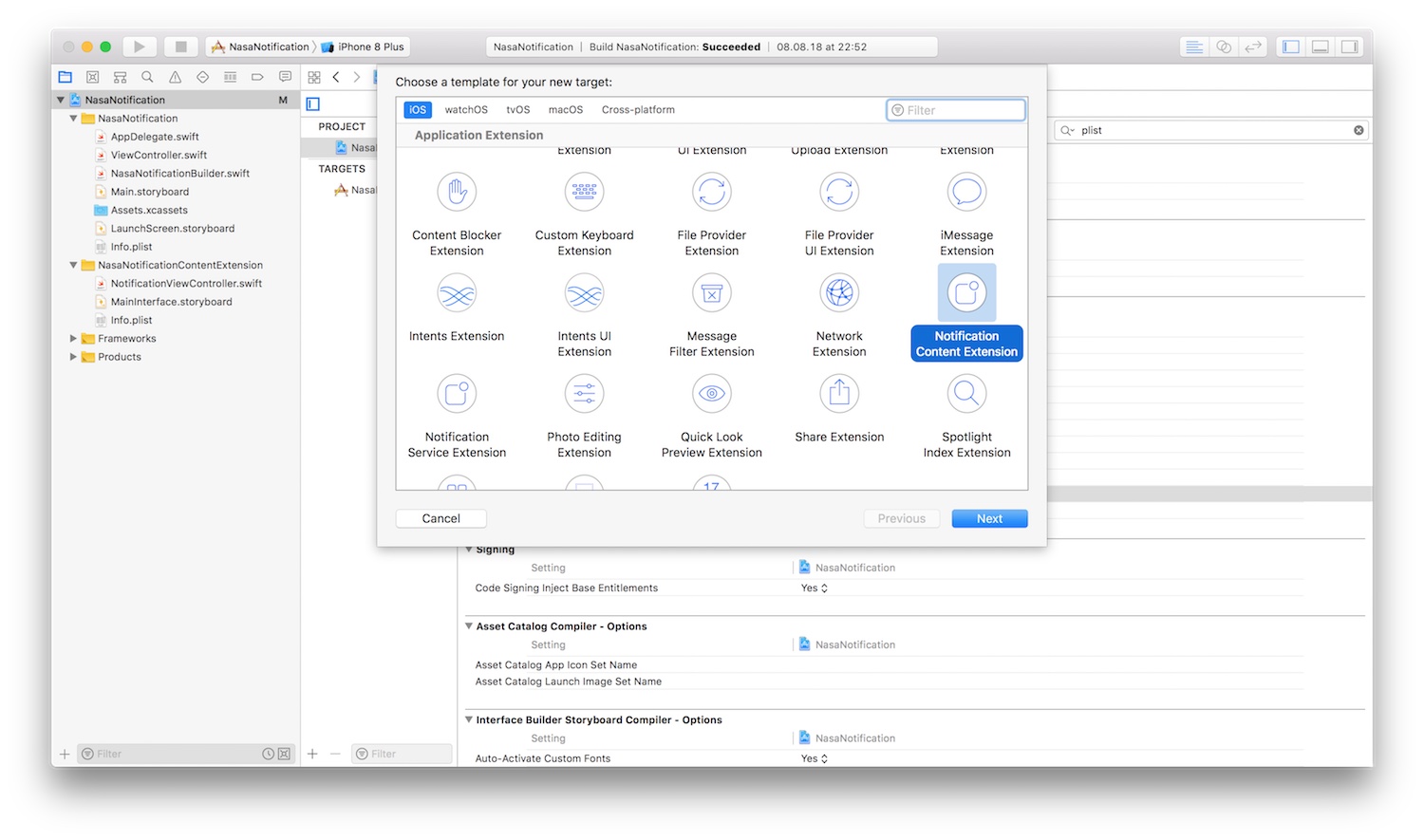

Add a new Notification Content Extension target to the app
Add a new Notification Content Extension target to the app

The extension that is created contains a NotificationViewController that adheres to the UNNotificationContentExtension. The documentation for this protocol says:

An object that presents a custom interface for a delivered local or remote notification. The UNNotificationContentExtension protocol provides the entry point for a notification content app extension, which displays a custom interface for your app’s notifications. You adopt this protocol in the custom UIViewController subclass that you use to present your interface. You create this type of extension to improve the way your notifications are presented, possibly by adding custom colors and branding, or by incorporating media and other dynamic content into your notification interface.

So if a UIViewController inside a Notification Content Extension adhere to the UNNotificationContentExtension we are able to access to the notification content and we can customize its UI. In the extension there's also a MainInterface.storyboard that contains a single controller associated with the NotificationViewController previously mentioned. We can use this storyboard to customize the notification UI using interface builder. So let's start by defining the interface in the storyboard. Below in the image there's the final result.

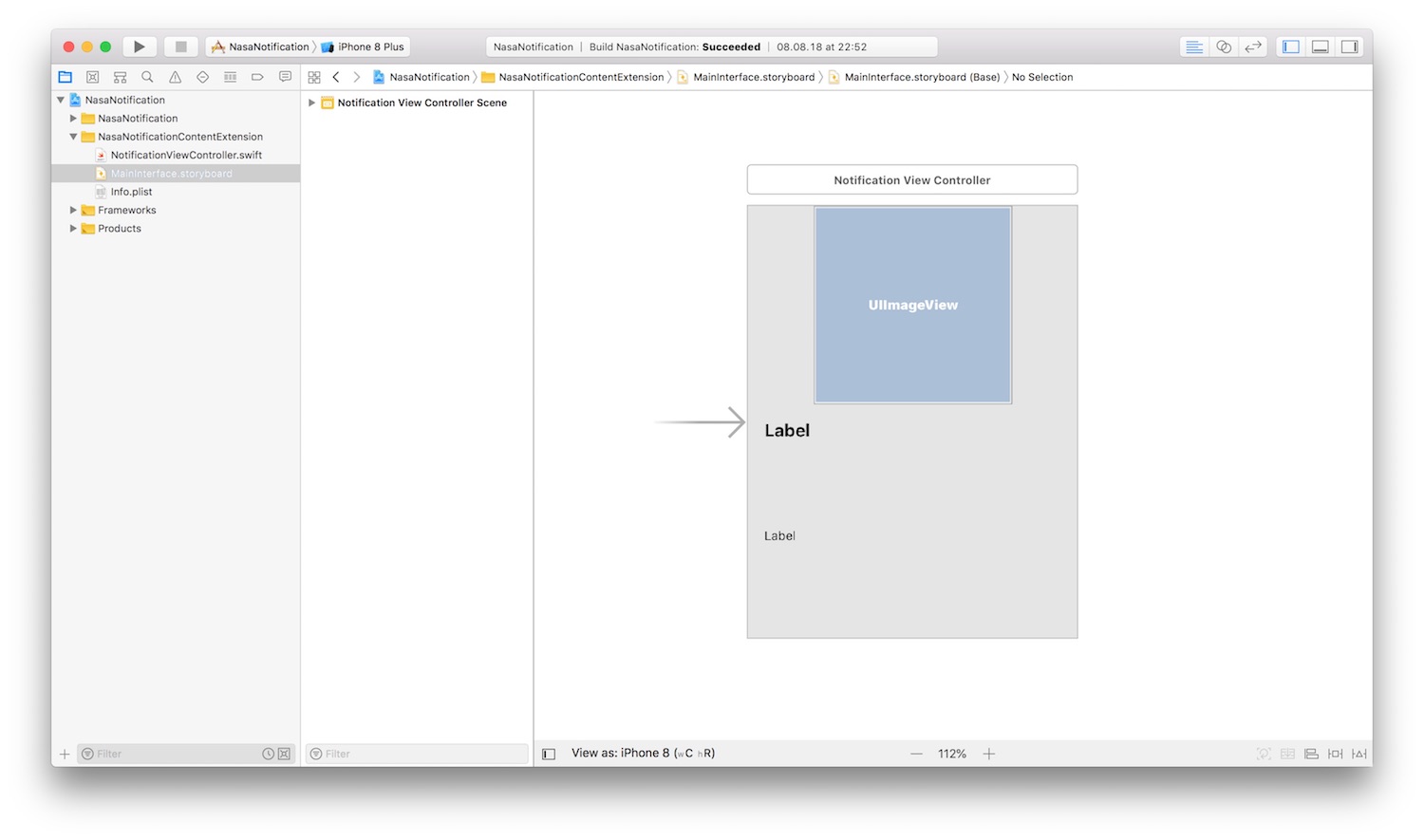

Customize the notification UI with the storyboard contained in the new created extension
Customize the notification UI with the storyboard contained in the new created extension

Then we can fill the UI with the notification content we receive in the func didReceive(_ notification: UNNotification) of the NotificationViewController controller that implements the protocol shown above. Below you can find its source code.

import UserNotifications
import UserNotificationsUI

class NotificationViewController: UIViewController, UNNotificationContentExtension {
    @IBOutlet weak var nasaImage: UIImageView!
    @IBOutlet weak var nasaTitle: UILabel!
    @IBOutlet weak var nasaDescription: UILabel!

    func didReceive(_ notification: UNNotification) {
        if let validTitle = notification.request.content.userInfo["title"] as? String,
            let validDescription = notification.request.content.userInfo["description"] as? String,
            let validImageName = notification.request.content.userInfo["imageName"] as? String {
            nasaTitle.text = validTitle
            nasaDescription.text = validDescription
            nasaImage.image = UIImage(named: validImageName)
        }
    }
}

Now to test our controller and our new notification UI, we can create a local notification. We will use some data taken from the nasa photo journal. We will create a NasaLocalNotificationBuilder that contains all the notification creation logic. This is the final result.

import UserNotifications

class NasaLocalNotificationBuilder {
    private let notificationCenter: UNUserNotificationCenter = UNUserNotificationCenter.current()
    private var notificationActions: [UNNotificationAction] = []
    private var notificationContent = UNMutableNotificationContent()

    func setActions() -> NasaLocalNotificationBuilder {
        notificationActions.append(
            UNNotificationAction(identifier: "view",
                                 title: "View Photo in app",
                                 options: [.foreground, .authenticationRequired])
        )
        notificationActions.append(
            UNNotificationAction(identifier: "skip",
                                 title: "Skip",
                                 options: [])
        )
        return self
    }

    func setCategory() -> NasaLocalNotificationBuilder {
        let notificationCategory = UNNotificationCategory(identifier: "NasaDailyPhoto",
                                                          actions: notificationActions,
                                                          intentIdentifiers: [],
                                                          hiddenPreviewsBodyPlaceholder: "",
                                                          options: .customDismissAction)
        notificationCenter.setNotificationCategories([notificationCategory])
        return self
    }

    func setContent() -> NasaLocalNotificationBuilder {
        notificationContent.title = "Your Nasa Daily Photo"
        notificationContent.body = "Long press to see you daily nasa photo"
        notificationContent.sound = UNNotificationSound.default()
        notificationContent.categoryIdentifier = "NasaDailyPhoto"
        notificationContent.userInfo = [
            "title" : "At the Heart of Orion",
            "description" : """
            Near the center of this sharp cosmic portrait, at the heart of the Orion Nebula, are four hot, massive
            stars known as the Trapezium. Gathered within a region about 1.5 light-years in radius, they dominate the
            core of the dense Orion Nebula Star Cluster. Ultraviolet ionizing radiation from the Trapezium stars,
            mostly from the brightest star Theta-1 Orionis C powers the complex star forming region's entire visible
            glow. About three million years old, the Orion Nebula Cluster was even more compact in its younger years
            and a recent dynamical study indicates that runaway stellar collisions at an earlier age may have formed
            a black hole with more than 100 times the mass of the Sun. The presence of a black hole within the cluster
            could explain the observed high velocities of the Trapezium stars. The Orion Nebula's distance of some
            1,500 light-years would make it the closest known black hole to planet Earth.
            """,
            "imageName" : "orion"
        ]
        return self
    }

    func build() {
        let trigger = UNTimeIntervalNotificationTrigger(timeInterval: 5, repeats: false)
        let request = UNNotificationRequest(identifier: "NasaDailyPhoto",
                                            content: notificationContent,
                                            trigger: trigger)
        notificationCenter.add(request, withCompletionHandler: nil)
    }
}

Then we can call the notification builder in the main controller of the app ViewController to generate the notification.

class ViewController: UIViewController {
    override func viewDidLoad() {
        super.viewDidLoad()
        NasaLocalNotificationBuilder()
            .setActions()
            .setCategory()
            .setContent()
            .build()
    }
}

Now we have to go back in our notification content extension and set some attribute in its info.plist. In particular we have to set:

  • UNNotificationExtensionCategory to the notification category that we want to customize. In our case we use NasaDailyPhoto, the value we previously set in the builder
  • UNNotificationExtensionDefaultContentHidden to hide the standard notification content when the user long press the notification.
  • if needed it is possible also to set the UNNotificationExtensionInitialContentSizeRatio to a value different from 1 to customize the aspect ratio of our notification.

We're ready to test our implementation. Below you can find a video with the final result of our implementation.

That's all for Notification Content App Extension on iOS. Let's start to test them in your app emoji-relaxed.
